Discover Our S175 Labelling Machine

A fully automatic, self-adhesive labelling system for the application of paper and clear self-adhesive labels to a wide range of products including cylindrical, rectangular, square or oval containers, in glass, plastic or composite materials.

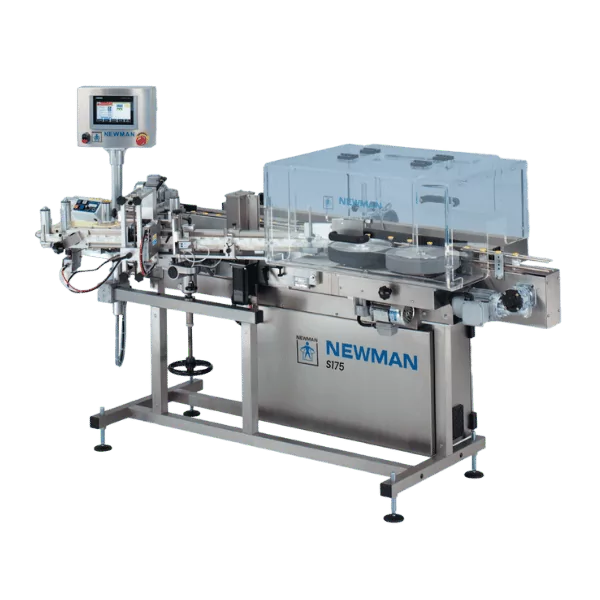

About S175 Labelling Machine

A variable speed roller at the infeed spaces the containers entering the machine. Each individual container is detected at the labelling point as it passes a sensor, at which point the label feed is activated.

The leading edge of the label is driven off the backing web at a linear speed that matches the container speed; this ensures smooth, accurate placement on the container surface.

The container, gripped between an applicator drum and presser pad, is controlled as the label is pressed firmly in place, ensuring high registration accuracy.

S175 Labelling Machine Configurator

Machine Features

  • Stainless steel construction

  • Interlocked guarding

  • cGMP design

  • Stepper motor drive for label web

  • Straight label arm, adjustable in all axes

  • Full variable speed drives

  • Hand wheel adjustment

  • Left or right label formats available

  • Simple container change, usually without change parts

  • Accurate label placement

  • Colour touch screen display

  • Allen Bradley or Siemens PLC controls

Machine Options

  • Hot foil, thermal, laser and inkjet printing options

  • Missing overprint detector

  • Missing label detector

  • Bar code reading systems

  • Vision Systems

  • Rotary infeed & outfeed tables

  • Secondary presser unit

  • Reject station for missing label, faulty/missing overprint and barcode with reject verification

  • Validation documentation package and implementation

  • Easisplice 470 module enables reel changes without labelling downtime

  • Queue switch control

Standard Specification

Container Diameter
10mm – 150mm
Labels Min
10mm (H) x 20mm (L)
Labels Max
150mm (H) x 300mm (L)
Max. Label Reel Diameter
Min Core Diameter
Variable up to 175 CPM
Electrical Supply:
230V-1Ph-50Hz. 1KW (60Hz Option)
Net Weight:
300 Kg
Compressed Air:
60psi/4.2 bar
Noise Emission:
@ 1m (subject to container type)

Labelling Products of S175

The S175 has been specifically designed to meet the requirements of the international pharmaceutical industry and the requirements of all the industry’s regulatory bodies, including the FDA, but is equally suited to other industries where flexibility, high speed accuracy and reliability are pre-requisites.

Experience the Newman Labelling Process

We specialise in designing top-of-the-line pharmaceutical labelling machines, ensuring accuracy, speed, and precision across a variety of containers while complying with regulatory standards.

Driven by Exceptional Service and Support


FDA Approved

The company also provides a full validation service to FDA, European and other national and international standards enabling easy progress through the necessary qualification procedures.

Secret to Success

Our success stems from a blend of high-quality service, precise and reliable equipment, efficient and thorough validation, skilled engineers, and the extensive experience of our staff.

High Quality Machinery

The products manufactured by Newman Labelling Limited are designed and built to meet and surpass the rigorous Quality requirements of the Pharmaceutical Industry.



Pharma Labelling Machines



Countries Covered


+ Years

MAchine Still Running


  CPM +

Machine Speed

Frequently Asked Questions

Explore these frequently asked questions to gain a deeper understanding of Newman Labelling Machines.

What types of pharmaceutical products can be labelled using Newman's machines?

Newman’s labelling machines can accommodate a wide range of pharmaceutical products, including ampoules, vials, syringes, glass and plastic bottles, cartons, and carpoules.

What is Faulty Label Removal System?

Faulty Label Removal System is an automatic Faulty Label Removal (FLR) System designed to reduce your waste by removing ‘faulty’ labels from the labelling process prior to application.

What are the highlights of Faulty Label Removal?

The three main highlights of Faulty Label Removal are:

  • Faulty labels are removed before application to the product.
  • Faulty labels are rejected individually.
  • Unlabelled products are rejected.
What factors should you consider when labelling pharmaceutical products?

It’s essential to consider certain factors, such as readability, durability, tamper-proofing, and many more when it comes to labelling pharmaceutical products.

What information should you display on a pharmaceutical product?

In the UK, the labelling of pharmaceutical products is subject to strict regulation by the Medicines and Healthcare Products Regulatory Agency (MHRA). The labelling of medications must include comprehensive information such as:

  • Name and strength of medicine
  • Dosage of strength
  • Expiry date
  • Warning and Precautions
  • Route of administration
What key regulations must pharmaceutical companies comply with?

Pharmaceutical companies are required to follow strict regulations concerning different aspects of their products, including but not limited to how they are identified, dosage information, expiration dates, storage conditions, and safety warnings.

What are some challenges pharmaceutical companies face in complying with regulatory standards?

Pharmaceutical companies face major obstacles when it comes to labelling pharmaceutical products due to the value of what’s inside the container, limited labelling areas, and strict regulatory requirements. The readability and accuracy of information are crucial but can be difficult to achieve given the delicate nature of the pharmaceutical containers. Keeping up with standards is also critical, making the labelling process even more challenging.

What are the automation features of Newman's Labelling Machines?

Newman’s Labelling machines have different levels of automation, including reject station and verification, barcode, automatic loading/unloading station, and many more.
