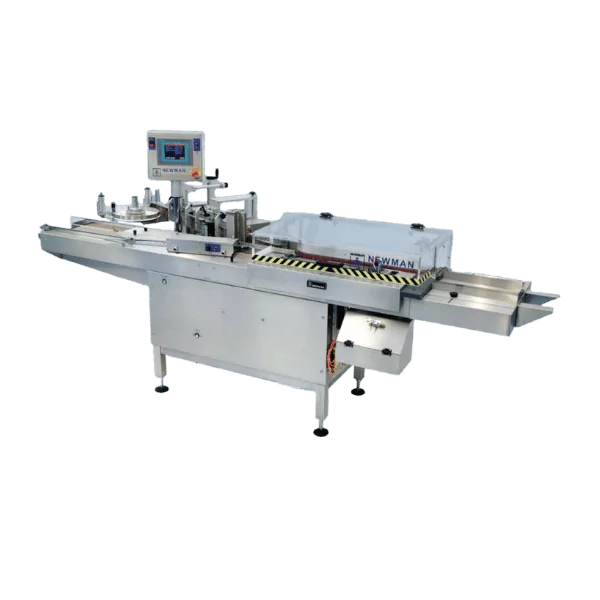

Discover Our 6VAL Labelling Machine
A labelling system designed to apply both clear and paper self-adhesive labels to a range of rigid cylindrical containers.
About 6VAL Labelling Machine
Typically, the containers to be labelled are supplied in trays which can be manually loaded at the infeed of the machine with labelled products being automatically reloaded onto empty trays at the outfeed.
Each individual container is detected at the labelling point as it passes beneath a sensor, at which point the label feed is activated. The leading edge of the label is driven off the backing web at a linear speed which matches the container speed; this ensures smooth, accurate placement on the container surface.
The container, gripped between an applicator belt and presser pad, is controlled as the entire label is pressed firmly in place, ensuring high registration accuracy.
Machine Features
Machine Options
Standard Specification
- High GMP design
- Inline or tray loading/unloading
- Colour touch screen HMI interface panel
- Full ‘positive accept’ security system
- Automatic critical device checking
- In Process Control
- Stainless steel construction
- PLC control
- Full counter-package
- Newman straight labelling arm
- Single AC motor drive gives synchronised infinitely variable speed control
- Production data printout
- Hot foil, thermal transfer, laser printing options
- Vision Systems, for OCV/OCR/barcode
- Full validation documentation package
- Bar code reading systems
- Easisplice 470 module enables reel changes without labelling downtime
- Ultrasonic label sensors for paper and clear labels
|
Name
|
Age
|
|---|---|
|
Container Diameter
|
8mm-50mm
|
|
Labels Min
|
12mm(H)x100mm(L)
|
|
Labels Max
|
25mm(H)x160mm(L)
|
|
Min. Height to Bottom of Label
|
1mm
|
|
Max. Label Reel Diameter
|
300mm
|
|
Min Core Diameter
|
45mm
|
|
Speed
|
max 275 C.P.M
|
|
Tray Size
|
400 x 180mm
|
|
Net Weight
|
475 Kg
|
|
Electrical Supply
|
230V-1Ph-50Hz, 1KW (60Hz option)
|
|
Compressed Air
|
60psi/4.2 Bar
|
|
Noise Emission:
|
<75dB @ 1m (subject to container type)
|
Labelling Products of 6VAL
The 6VAL labelling system is designed to apply both clear and paper self-adhesive labels to a range of rigid cylindrical containers.
Driven by Exceptional Service and Support
FDA Approved
The company also provides a full validation service to FDA, European and other national and international standards enabling easy progress through the necessary qualification procedures.
Secret to Success
Our success stems from a blend of high-quality service, precise and reliable equipment, efficient and thorough validation, skilled engineers, and the extensive experience of our staff.
High Quality Machinery
The products manufactured by Newman Labelling Limited are designed and built to meet and surpass the rigorous Quality requirements of the Pharmaceutical Industry.
 SinceÂ
0
Pharma Labelling Machines
0
+
Countries Covered
0
+ Years
MAchine Still Running
0
CPM +
Machine Speed
Frequently Asked Questions
Explore these frequently asked questions to gain a deeper understanding of Newman Labelling Machines.
Newman’s labelling machines can accommodate a wide range of pharmaceutical products, including ampoules, vials, syringes, glass and plastic bottles, cartons, and carpoules.
Faulty Label Removal System is an automatic Faulty Label Removal (FLR) System designed to reduce your waste by removing ‘faulty’ labels from the labelling process prior to application.Â
The three main highlights of Faulty Label Removal are:Â
- Faulty labels are removed before application to the product.Â
- Faulty labels are rejected individually.Â
- Unlabelled products are rejected. Â
It’s essential to consider certain factors, such as readability, durability, tamper-proofing, and many more when it comes to labelling pharmaceutical products.
In the UK, the labelling of pharmaceutical products is subject to strict regulation by the Medicines and Healthcare Products Regulatory Agency (MHRA). The labelling of medications must include comprehensive information such as:
- Name and strength of medicine
- Dosage of strength
- Expiry date
- Warning and Precautions
- Route of administration
Pharmaceutical companies are required to follow strict regulations concerning different aspects of their products, including but not limited to how they are identified, dosage information, expiration dates, storage conditions, and safety warnings.
Pharmaceutical companies face major obstacles when it comes to labelling pharmaceutical products due to the value of what’s inside the container, limited labelling areas, and strict regulatory requirements. The readability and accuracy of information are crucial but can be difficult to achieve given the delicate nature of the pharmaceutical containers. Keeping up with standards is also critical, making the labelling process even more challenging.
Newman’s Labelling machines have different levels of automation, including reject station and verification, barcode, automatic loading/unloading station, and many more.
